ePropulsion eLite 500W

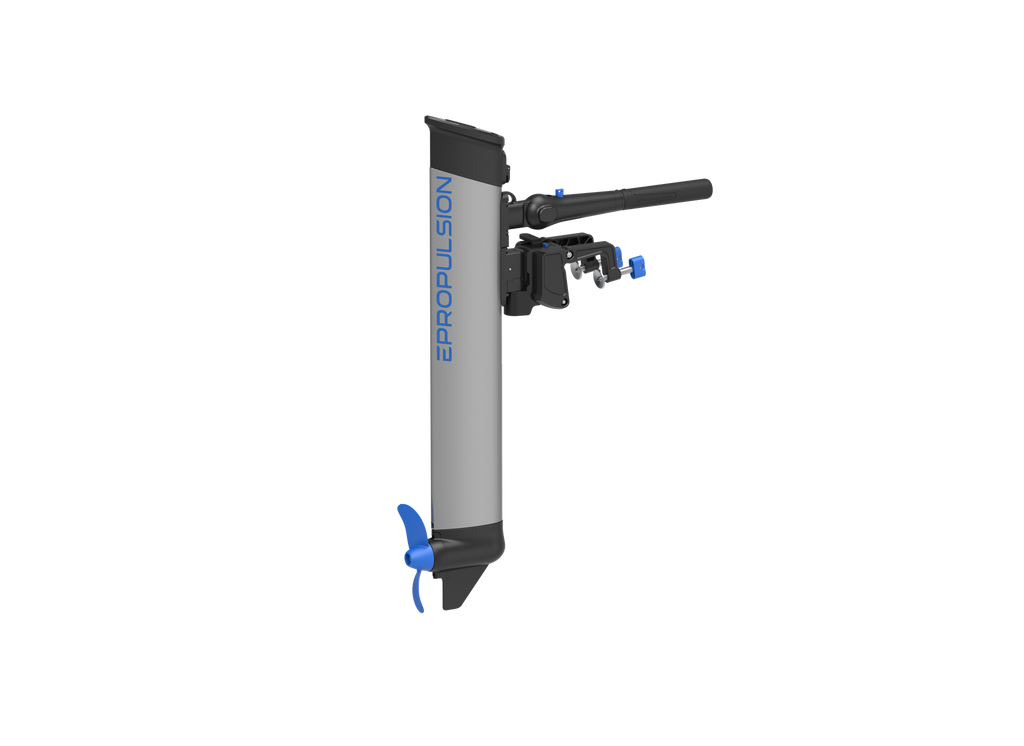

Product Overview: ePropulsion eLite 500W Electric Outboard

The ePropulsion eLite 500W Electric Outboard defines a new era in compact marine propulsion. Designed as the ultimate portable solution for dinghies, tenders, and small light-duty craft, it offers a clean, quiet, and user-friendly alternative to small internal combustion engines.

Weighing just under 15 lbs (motor only) and featuring an integrated battery, the eLite is built for effortless transport and operation. It combines advanced efficiency with a space-saving design, making it the perfect companion for boaters who value simplicity and sustainability.

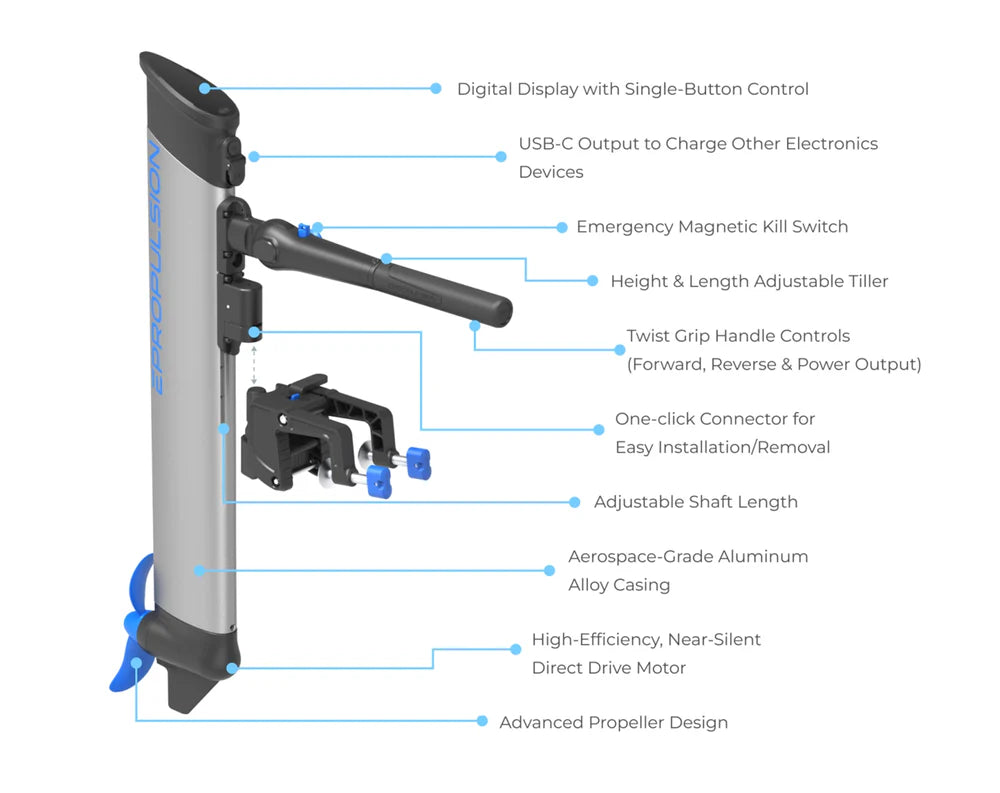

Key Features & Benefits

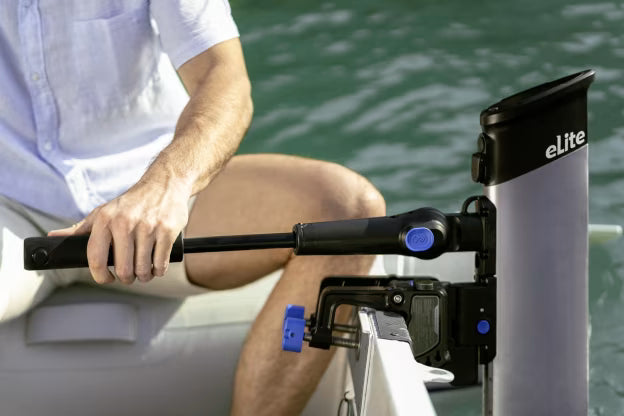

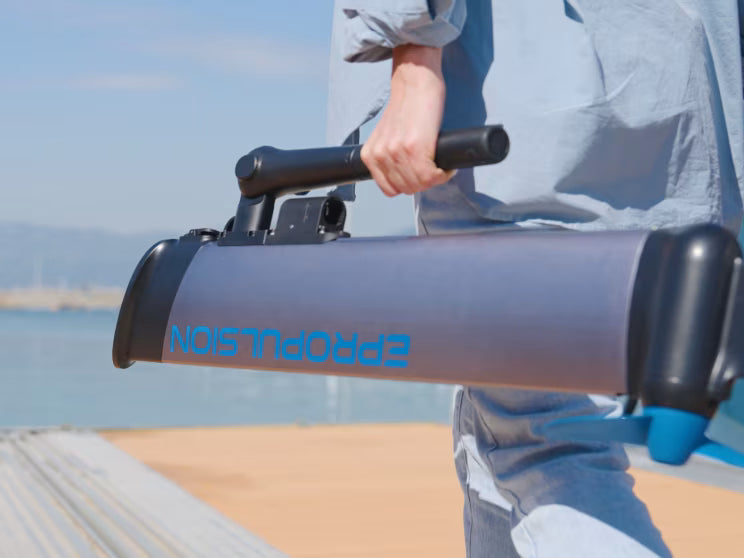

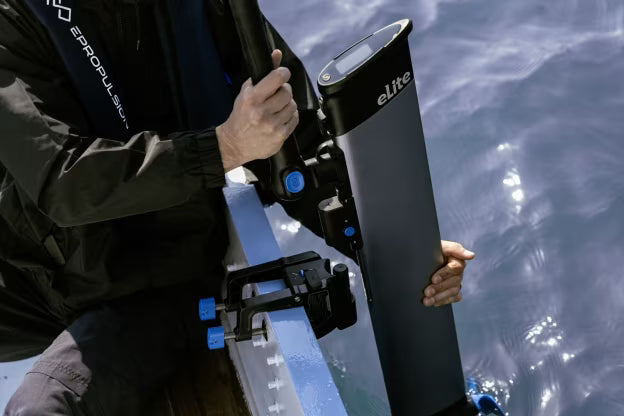

• Ultra-Lightweight Design: At just 14.7 lbs (motor excluding bracket), the eLite is the most compact motor in its class. The one-click quick-release bracket allows you to remove the motor instantly for charging or storage while leaving the bracket on the transom.
• Sport Mode Boost: While nominal power runs efficiently at 500W, the dedicated Sport Mode boosts output to 750W for up to one minute, giving you extra speed when you need to fight currents or wind.
• Integrated Battery System: A built-in 378Wh lithium-ion battery eliminates bulky external cables and heavy fuel tanks. It offers a smart Battery Management System (BMS) for safety and longevity.
• Adjustable Shaft Length: Unlike traditional fixed-shaft motors, the eLite features an adjustable shaft height. This ensures the prop sits at the perfect depth for optimal efficiency on a wide variety of transom heights.

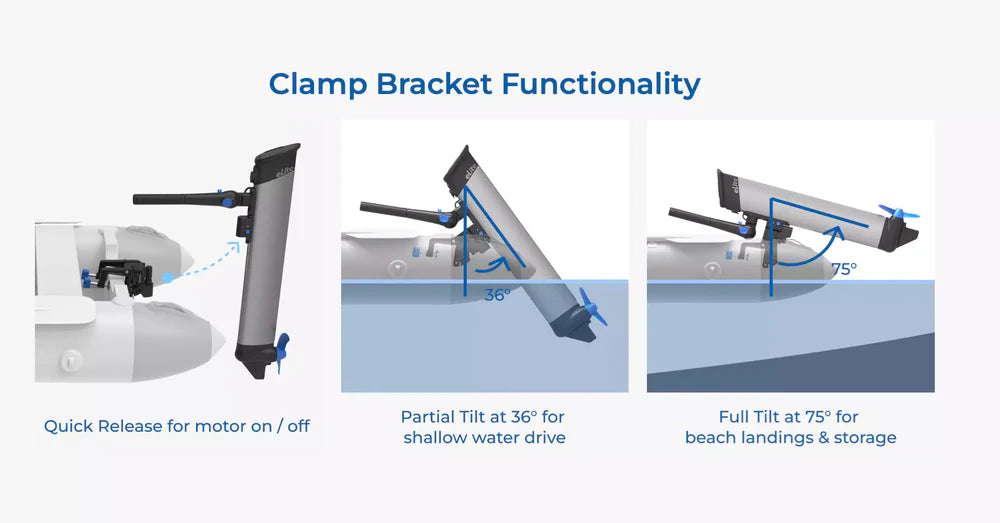

• Advanced Tilt & Trim: Navigate confidently with three trim angles (8°, 17°, 26°), a dedicated Shallow Water Mode (36°) to prevent grounding, and a full 75° tilt for beaching or storage.
• USB-C Output: The motor includes a USB-C port to charge smartphones and other devices directly from the outboard’s battery.

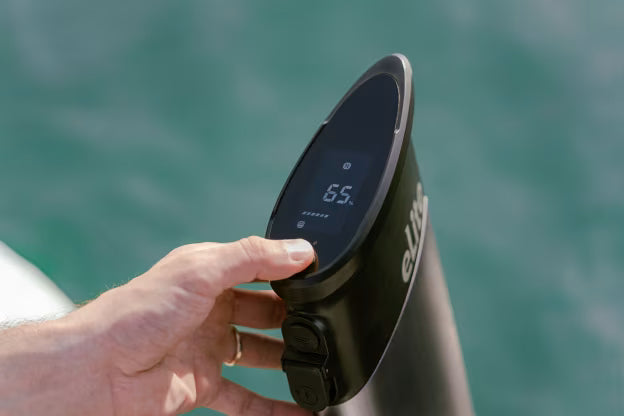

• Digital Display: A highly visible smart dashboard keeps you informed of battery level, power output, and system status in real-time.

Technical Specifications

• Nominal Power: 500 W
• Maximum Power (Sport Mode): 750 W
• Battery: Integrated 378Wh 25.2V Lithium-ion
• Motor Weight: 14.7 lbs
• Total Weight (with Bracket): 17.4 lbs
• Steering: ±70° steering angle
• Cooling: Natural water cooling (no noise, no impeller maintenance)
• Charger: 100–240V AC Charger included (12V charger optional)
• Waterproof Rating: IP67 (casing and connections)
• Dimensions: 11.7" x 3" x 35" (Short Shaft version)

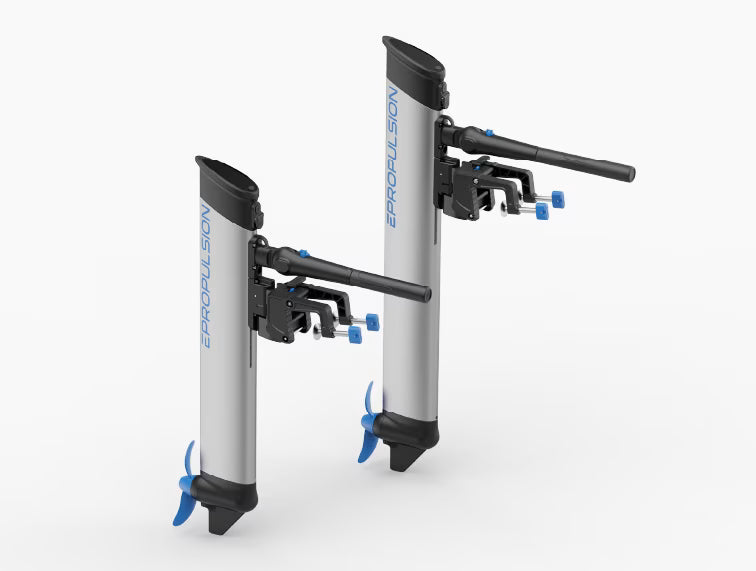

Shaft Sizing Guide

The eLite comes in two versions, each with adjustable lengths to fine-tune your setup:

• Short Shaft Model: Adjustable to 15.8", 14.27", 12.7", or 11.1". (Recommended for transom heights roughly 15" and under).
• Long Shaft Model: Adjustable to 21.7", 20.2", 18.6", or 17.0". (Recommended for transom heights roughly 16" and over).

Performance Estimates

Based on a single operator in an 8ft aluminum dinghy under calm conditions:

• Sport Mode (750W): Approx. 5.2 mph speed (limited duration)
• Full Power (500W): Approx. 4.7 mph speed | 45 minutes runtime | 3.5 miles range
• Half Power (250W): Approx. 3.7 mph speed | 1.5 hours runtime | 5.6 miles range

What's Included

• ePropulsion eLite Outboard Motor
• Transom Clamp Bracket
• AC Charger (100-240V)
• Carrying Bag
• Magnetic Kill Switch (x2)
• Hex Wrench
• User Manual & Quick Start Guide

Keep your eLite powered and protected with these genuine ePropulsion accessories:

Charging & Power

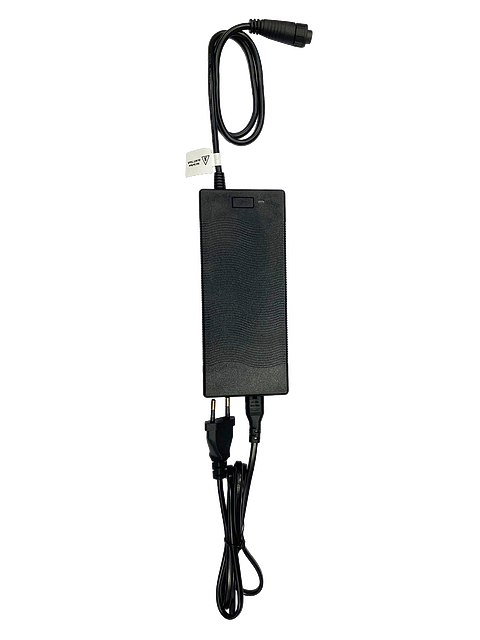

• eLite 110V Wall Charger – The standard AC replacement charger for home or dock use.

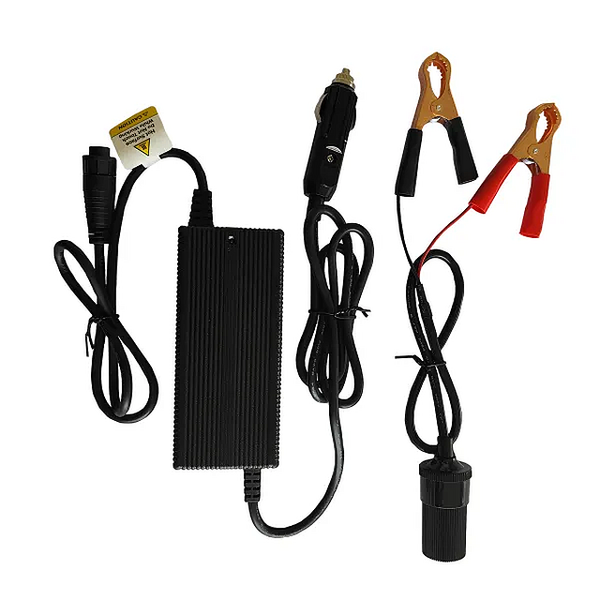

• eLite 12V DC Charger – Perfect for charging your motor from a vehicle or house battery while on the move.

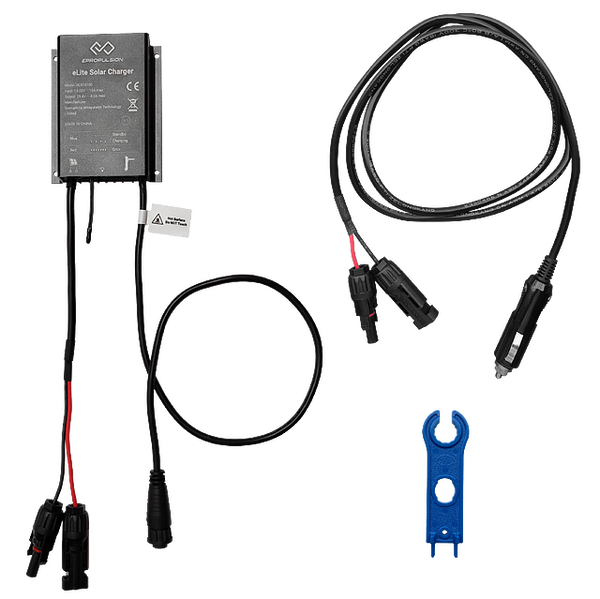

• eLite Solar Charger – Stay off-grid longer by harnessing solar power to recharge your integrated battery.

Replacement Parts

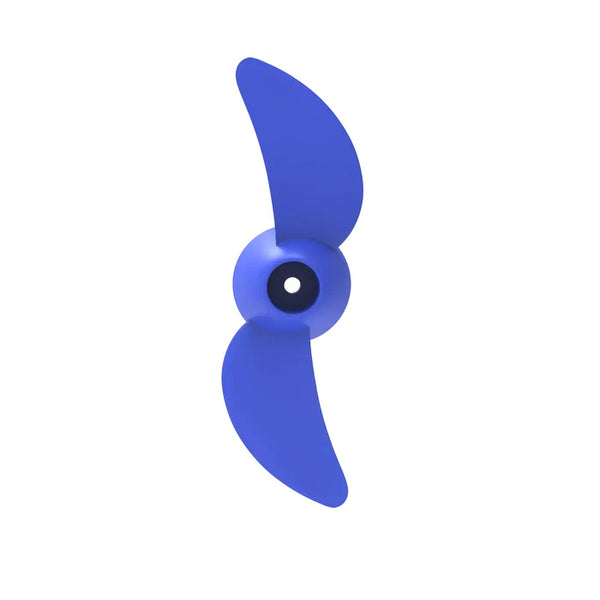

• Spare eLite Propeller – A high-efficiency 2-blade composite propeller. Always keep a spare on board for peace of mind.
