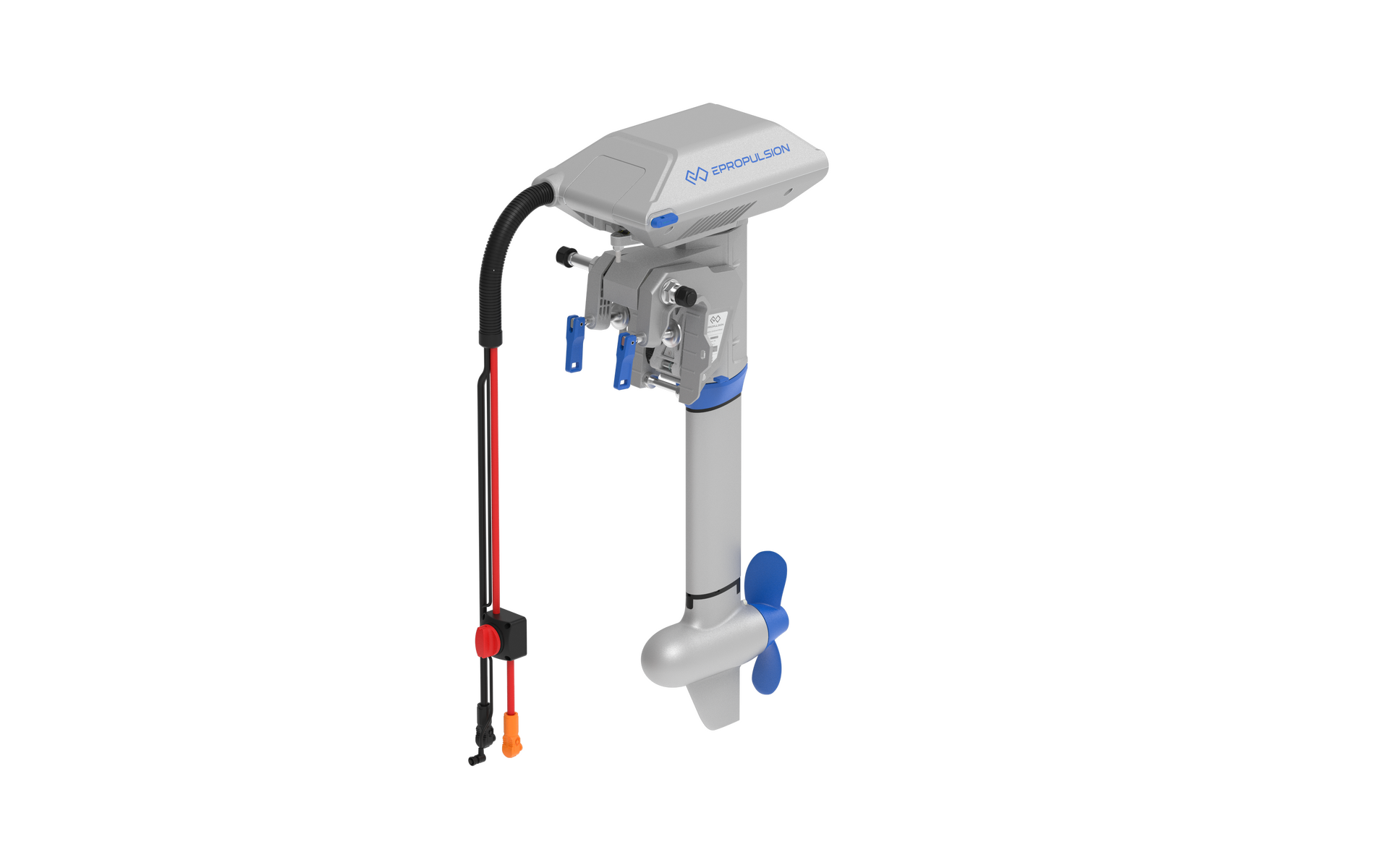

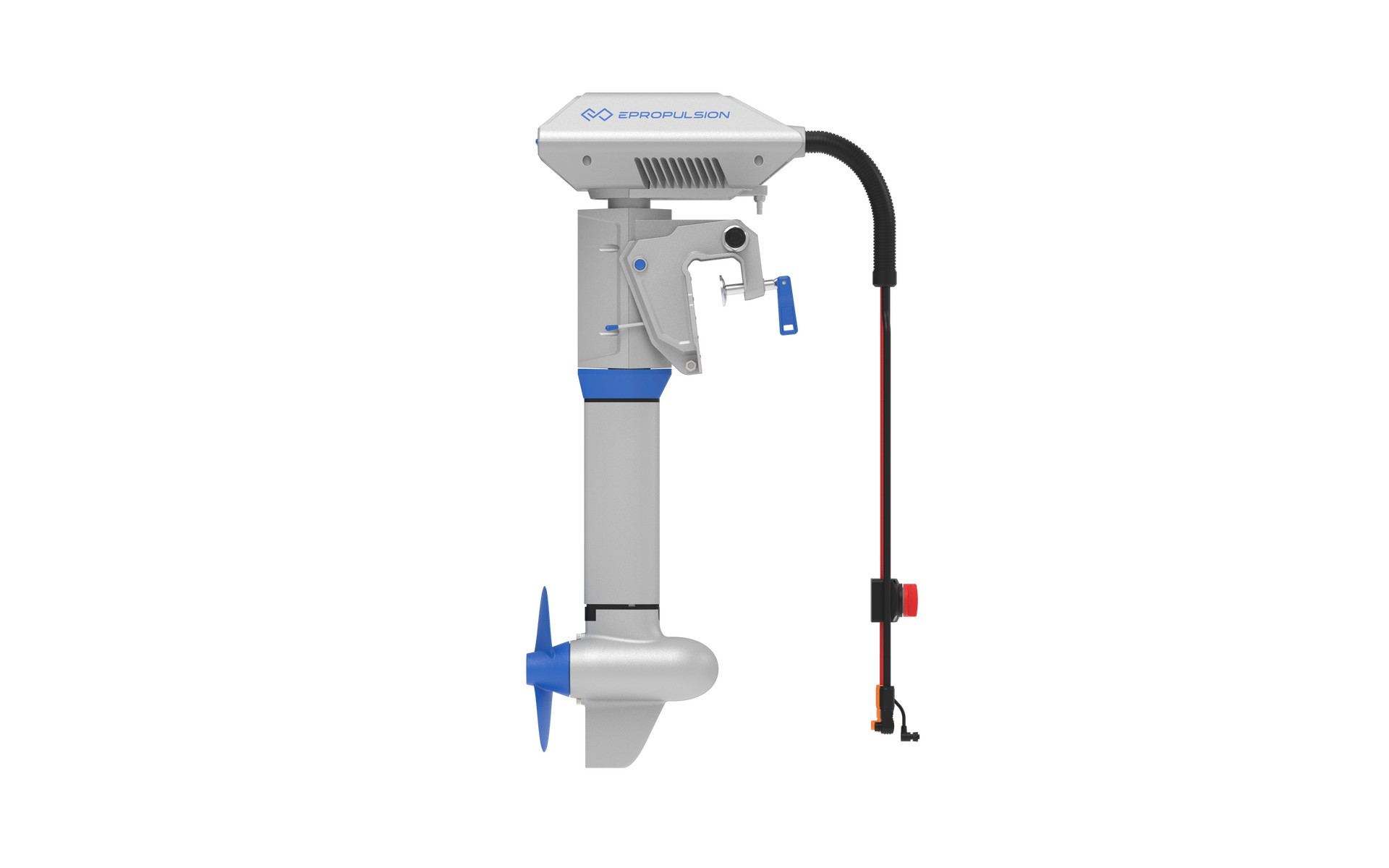

ePropulsion Navy 3.0 EVO

Unlike the smaller portable units, the Navy 3.0 Evo is a 48V system designed to work with high-capacity external batteries (such as the ePropulsion E-Series). It stands out with its industry-leading hydrogeneration capability, allowing sailboats to recharge their batteries while sailing under wind power.

Key Features & Benefits

• 6HP Equivalent Power: Delivers 3kW of propulsive power, providing strong thrust for heavier loads or higher speeds compared to portable models.

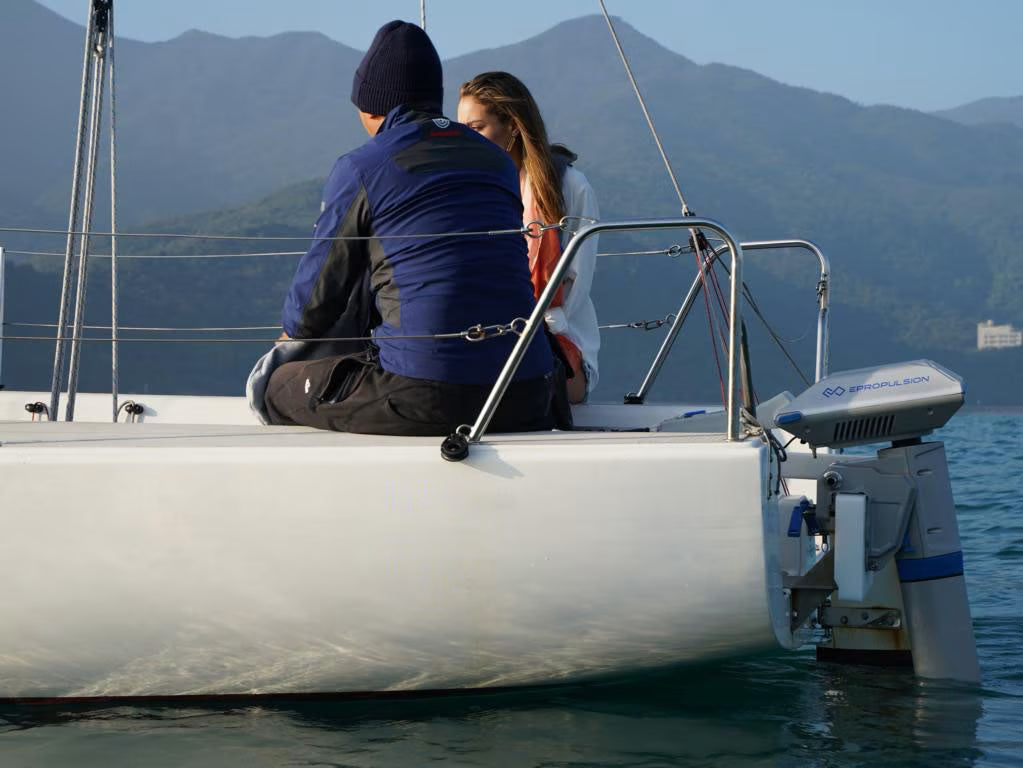

• Hydrogeneration: The industry-first functionality that allows the motor to charge its own battery when the boat is sailing (towed by wind) at speeds between 4 and 10 knots.
• Flexible Control Options: Compatible with multiple control styles to suit your boat, including a Tiller Handle, Side Mount Control, or Top Mount Control (dual controls also available).
• External 48V Battery System: Designed to pair with the ePropulsion E-Series batteries (E40, E80, or E175) for massive capacity and all-day range.
• Silent Operation: Direct-drive technology ensures the motor runs quietly, making it perfect for fishing or enjoying nature without engine noise.
• Maintenance-Free: No gears, no oil changes, and no winterization required.
• Safety Wristband: Compatible with the wireless safety wristband, which instantly kills the motor if you fall overboard (man-overboard protection).

Technical Specifications

• Nominal Power: 3 kW
• Input Voltage: 39V – 60V DC
• Motor Weight: 53.6 lbs (24.3 kg)
• Propeller: 10.2" × 6.7" 2-blade composite (Standard)
• Trim / Tilt Angles: 0°, 5°, 10°, 15° (Trim) / 60° (Tilt)
• Steering: Tiller or Remote (sold/configured separately)
• Cooling System: Natural water cooling
• Waterproof Rating: IP67
• Hydrogeneration: Activated at approx. 4.5 knots

Shaft Sizing Guide

The Navy 3.0 Evo is available in two fixed shaft lengths. Correct sizing is critical for performance and efficiency.

• Short Shaft (S): Shaft length 25.0" (63.5 cm) — For transom height between 15" - 20" (38-51 cm)
• Long Shaft (L): Shaft length 29.8" (75.9 cm) — For transom height over 20" (51 cm)Sizing Tip: Because the Navy 3.0 is more powerful, the anti-ventilation plate should sit slightly lower than on smaller motors. Measure carefully.

Performance Estimates

Based on a 12ft aluminum boat with one person and one E80 Battery (4096Wh) in calm water.

• Full Power (3000W): Approx. 10.2 mph (16.4 kph) | 1 hr 20 mins runtime | 13.7 miles range
• Cruising Power (1500W): Approx. 8.0 mph (13 kph) | 2 hrs 40 mins runtime | 21.7 miles range
• Economical Speed (500W): Approx. 5.6 mph (9 kph) | 8 hrs runtime | 45 miles range

What's Included

• Navy 3.0 Evo Motor Body (Short or Long Shaft)
• Main Switch Cable (approx. 3.3 ft)
• Battery Connecting Cables
• Standard Propeller
• User Manual & Warranty Card

Recommended Parts & Accessories for ePropulsion Navy 3.0 EVO

Enhance your Navy 3.0 EVO with these essential accessories for control, power, and long-term maintenance.

Remote & Control Systems

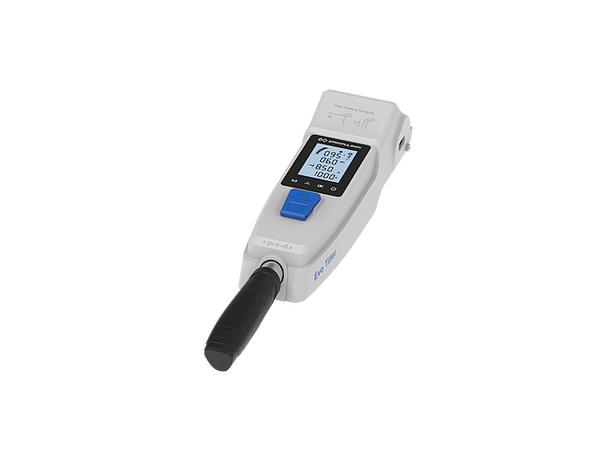

• Evo Tiller – Control handle with an integrated digital display for real-time motor and battery data.

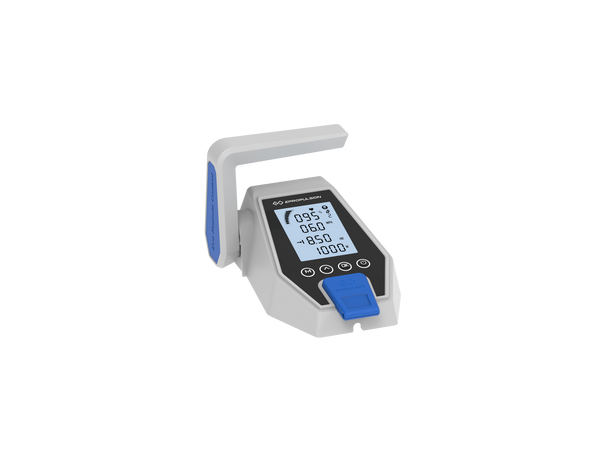

• Evo Remote Control – Wireless or wired throttle for comfortable helm operation.
• Evo Side Mount Control – Professional side-mounted throttle designed for console setups.
• Evo Dual Remote Control – Precision management for dual-motor Navy configurations.

Batteries & Power Management

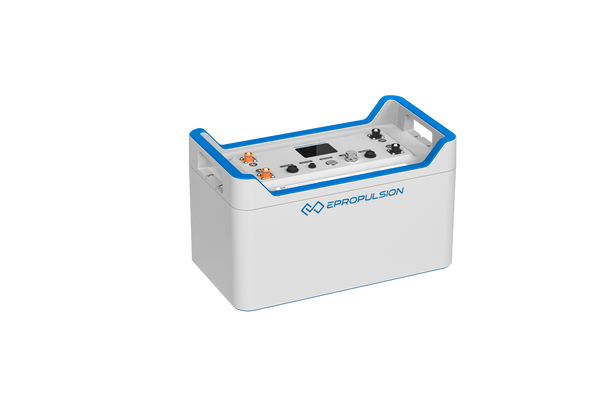

• E60 Battery – High-performance 3072Wh LiFePO4 battery for reliable 48V power.
• E163 Battery – Premium 8345Wh battery for maximum range and long-distance cruising.
• Spirit/Navy Communication Cable (0.5m)
• Spirit/Navy Communication Cable (5m)
• Spirit/Navy Communication Extension Cable (5m)
• Spirit/Navy Y-Type Communication Cable (0.3m)

Maintenance & Performance

• Navy 3.0 Replacement Propeller – Genuine 2-blade fiber-reinforced propeller; essential to keep as a spare.
• Navy Series Anode – Sacrificial anode for motor housing protection.
• Navy EVO Anode – Specific corrosion protection for the EVO motor unit.
• Navy Clamp Anode – Protects the transom mounting bracket from galvanic corrosion.
• Navy Anticavitation Plate – Improves efficiency and protects the propeller from drawing in air.

*Note: Batteries (E-Series) and Controls (Tiller/Remote) are typically configured and sold separately to match your specific boat setup.
