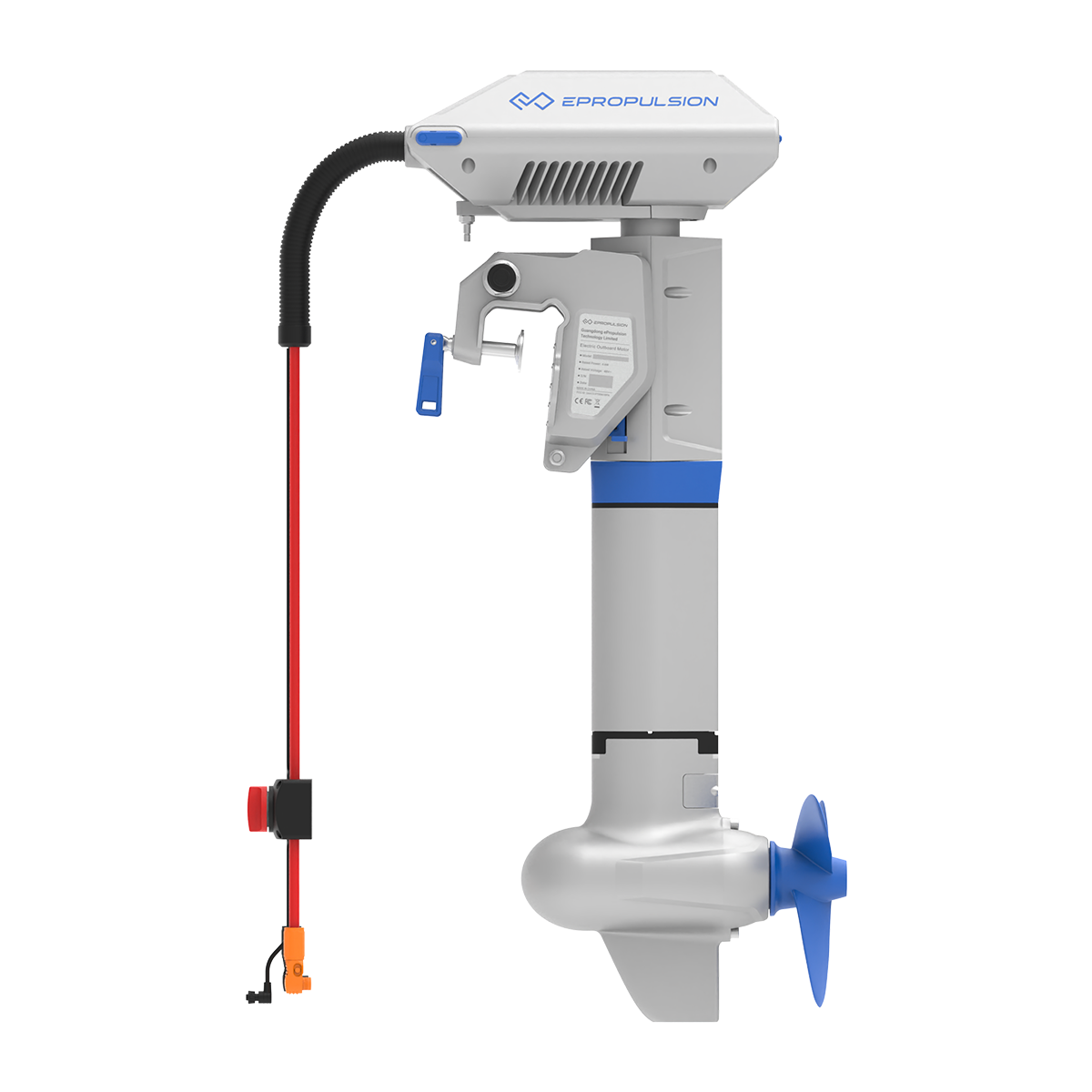

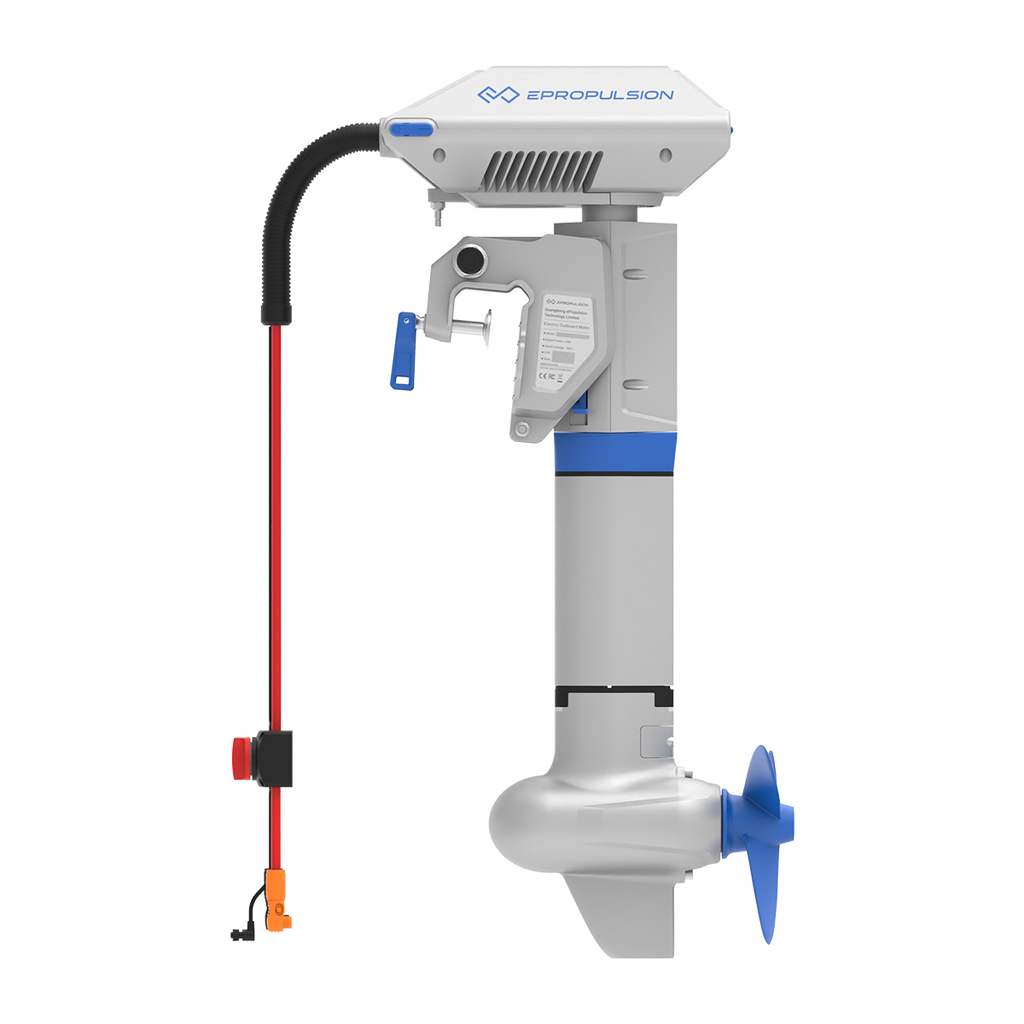

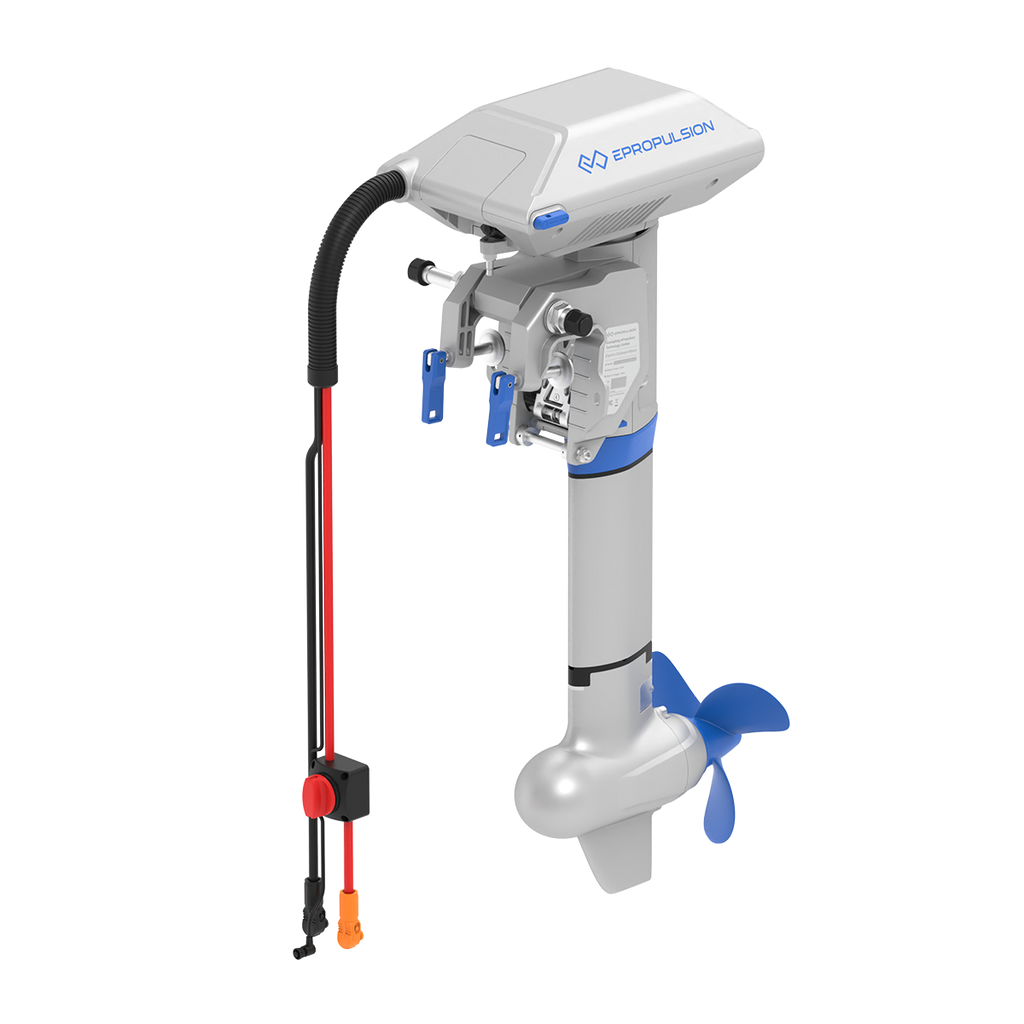

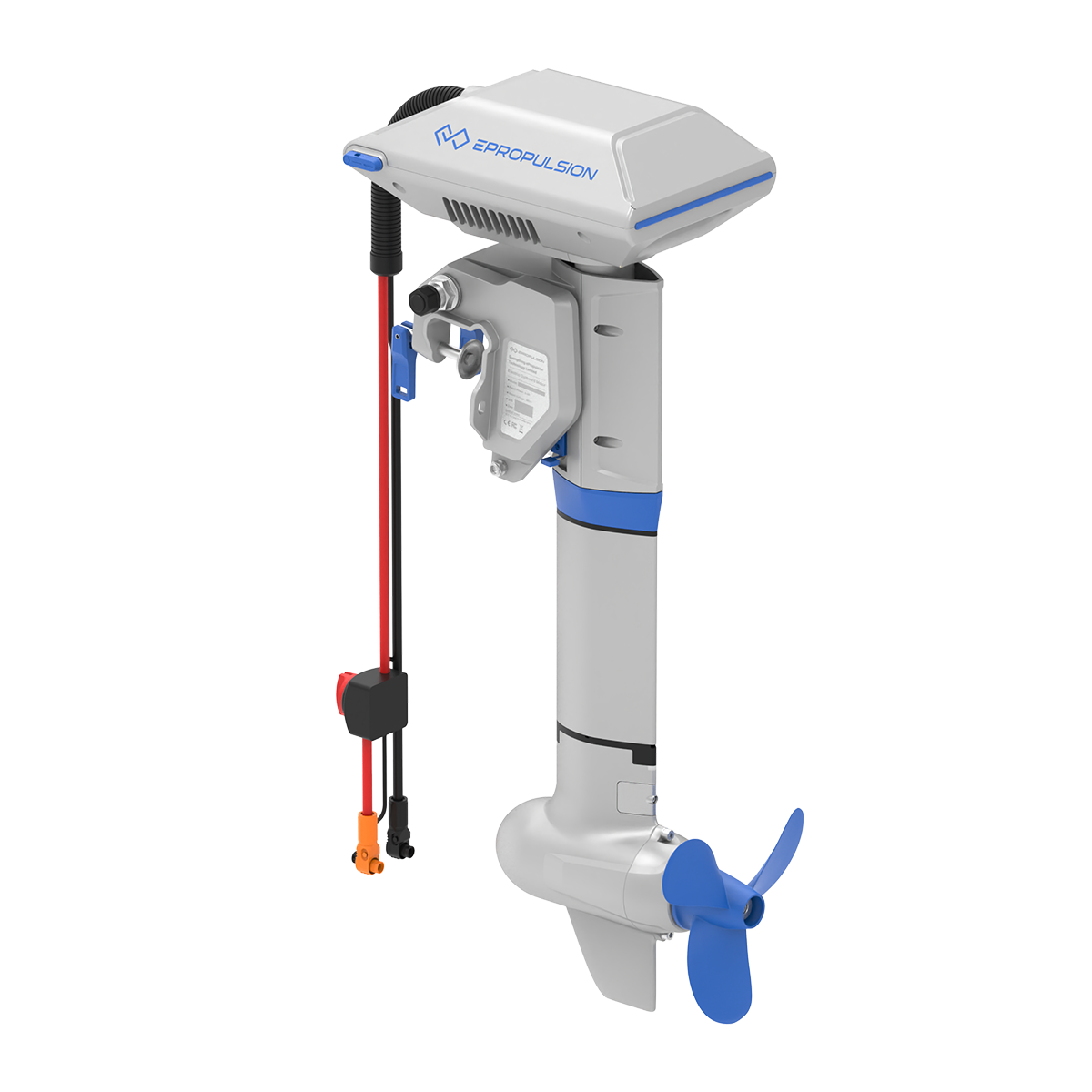

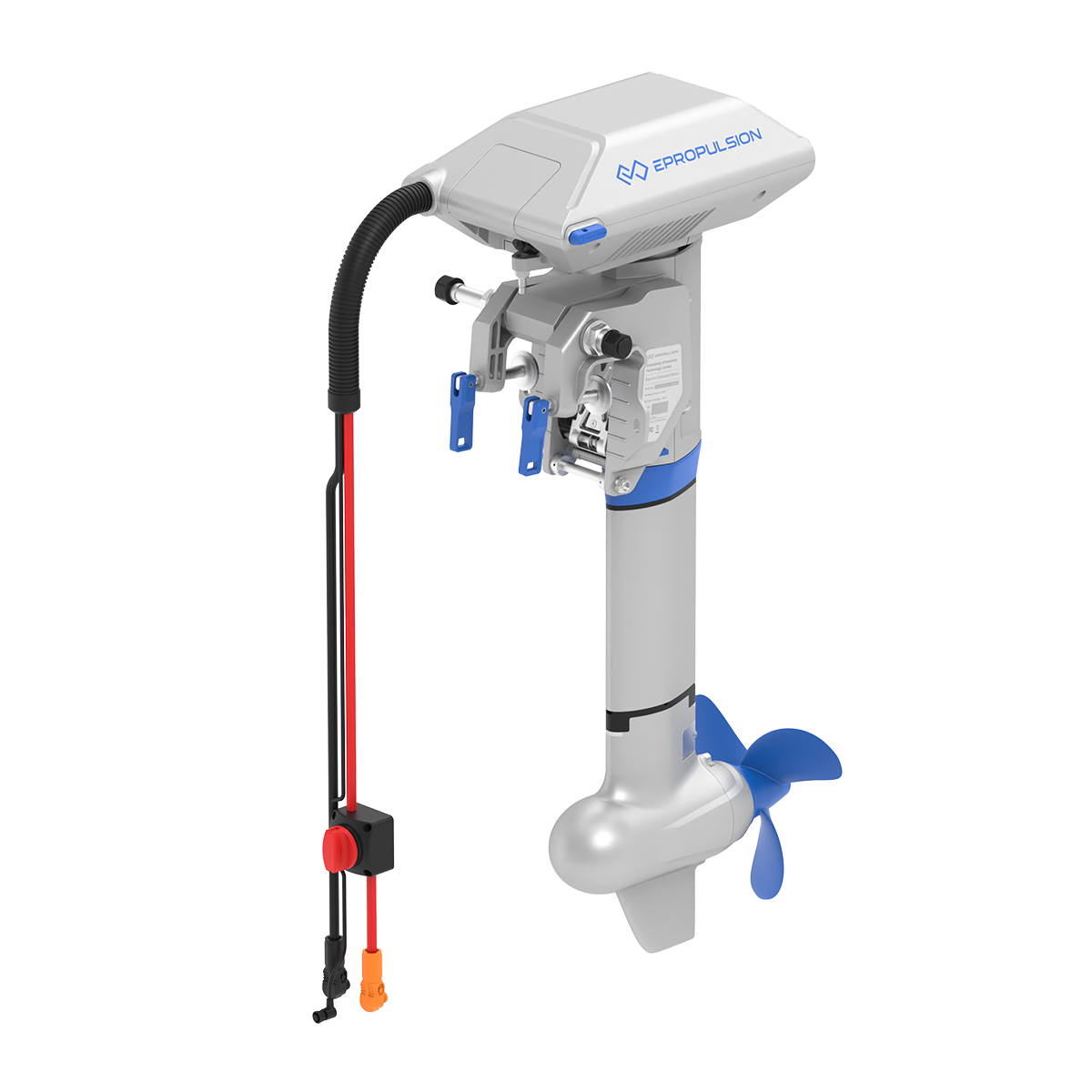

ePropulsion Navy 6.0 EVO 9.9 HP

The ePropulsion Navy 6.0 Evo is the most powerful model in the Navy series, delivering a robust 6kW of power—equivalent to a 9.9 HP gasoline outboard. It is the ideal propulsion solution for larger aluminum fishing boats, RIBs, workboats, and cruising sailboats up to 6 tons.

Unlike the portable Spirit series, the Navy 6.0 Evo runs on a 48V external battery system. It combines heavy-duty performance with the signature quiet, maintenance-free operation of electric drive. It also features advanced hydrogeneration, allowing sailboats to recharge their batteries while under sail.

Key Features & Benefits

• 9.9 HP Equivalent Power: Delivers 6kW of continuous propulsive power, capable of planing small boats or pushing larger vessels with authority.
• Hydrogeneration: A game-changer for sailors, this feature allows the motor to charge its own batteries when being towed by the wind (sailing at 4.5+ knots), providing infinite range potential.
• External 48V System: Built to pair with ePropulsion’s E-Series batteries (specifically the E163 or dual E80s) for maximum range and runtime.
• Flexible Controls: Choose the control interface that fits your helm: Evo Tiller, Top Mount Remote, Side Mount Remote, or Dual Remote (for twin motor setups).
• Direct Drive Quiet: Uses a brushless DC motor with no gearbox, eliminating the high-pitched whine of standard outboards and removing the need for gear oil changes.
• Magnetic Emergency Stop: Keeps you safe with a magnetic kill switch and compatibility with wireless man-overboard safety wristbands.

Technical Specifications

• Nominal Power: 6 kW (approx. 9.9 HP equivalent)
• Input Voltage: 39V – 60V DC (48V Nominal)
• Motor Weight: 79.4 lbs (36 kg)
• Propeller: 12.6" × 10.8" 3-blade composite (Standard)
• Trim / Tilt Angles: 0°, 5°, 10°, 15° (Trim) / 60° (Tilt)
• Steering: Tiller or Remote (sold/configured separately)
• Cooling System: Natural water cooling (no water pump/impeller to replace)
• Waterproof Rating: IP67
• Hydrogeneration: Yes (Active above ~4.5 knots)

Shaft Sizing Guide

The Navy 6.0 Evo uses fixed shaft lengths. Because this motor is larger, the shaft length definitions differ slightly from the smaller motors.

• Short Shaft (S): Shaft length 25.2" (64 cm) — Recommended for transom heights of roughly 15"–20" (40–50 cm).
• Long Shaft (L): Shaft length 30.1" (76.5 cm) — Recommended for transom heights over 20" (50 cm).Sizing Tip: Measure vertically from the top of the transom to the bottom of the hull. Ensure the anti-ventilation plate sits below the water line but not deep enough to create excessive drag.

Performance Estimates

Based on a 12ft aluminum boat with one person and one E175 Battery (8960Wh) in calm water.

• Full Power (6000W): Approx. 15 mph (24.3 kph) | 1 hr 30 mins runtime | 22.5 miles range
• Cruising Power (3000W): Approx. 8 mph (13 kph) | 3 hrs runtime | 24 miles range
• Economical Speed (500W): Approx. 4 mph (6.5 kph) | 18 hrs runtime | 72 miles range

What's Included

• Navy 6.0 Evo Motor Body (Short or Long Shaft)
• Main Switch Cable (approx. 3.3 ft)
• Battery Connecting Cables
• Standard Propeller (3-blade)
• User Manual & Warranty Card
• Note: Batteries (E-Series) and Control Units (Tiller/Remote) must be purchased separately to suit your specific vessel.
